Visionary Digital Systems always utilizes the latest computer technology available. Our workstations define the work-flow and speed of the system. Because of the ever changing computer technology, exact specifications are available upon request and vary with our clients' imaging requirements.

The BK Plus and BK imaging systems come with the following:

Solid aluminum full tower case completely customized
Hand made wire harness all sheathed and shrink wrapped
Five 120mm silent cooling fans with hydro dynamic bearings.
ASUS X79 WS Premium Motherboard
GTX 670 Nvidia Video card 2GB DDR5
GTX 670 Nvidia Video card 2GB DDR5( 2 way SLI Optional)
GTX 680 Nvidia Video card 4GB DDR5 (Optional)
Certified Platinum 1000 W modular silent power supply
Certified Gold 1500 W modular silent power supply (Optional)
Intel i7 3930K clocked to 4.2 GHz – 4.5 GHz (6 cores 12 threads)
  •  Intel i7 3960X clocked to 4.2 GHz – 4.8 GHz (6 cores 12 threads) Optional
Noctua NH-D14 cooling system
32GB DDR3 1866 MHz. quad channel memory (64GB Optional)
Two Western Digital Enterprise 2TB drives for internal storage. No Raid ( Twin 4TB drives optional)
One Intel 180 GB SSD Boot Drive
One Intel 120 GB SSD Clone Drive
One Kingston Hyper X 480 GB SSD as Primary Image Drive
One WD 1TB drive User files and desktop
One Kingston Hyper X 120 GB SSD as scratch drive
One Kingston Hyper X 120 GB SSD as cache drive
LG Blu-ray Burner w 3D
All-in-one Media reader with USB 3.0
Custom installed sound dampening throughout the case
Windows 7 Pro 64 bit OS
30 W per channel fan controller for four fans
Razor Black Widow mechanical backlight programmable keyboard
Razor Death Adder mouse and Asus PCE-N13 PCIE Wireless internet adapter
  •  Requires optional liquid cooling system

Installed Software:

Windows 7 Professional 64 bit
Adobe CS6 Ext.
Adobe Lightroom 4
Zerene Stacker
Helicon Focus
Acronis True Image home 2011
Visionary Digital Camlift software

Entire system is ghosted with Acronis True Image Prior to shipping,
Includes (2) 24" flat screen Ultra Sharp calibrated graphics monitors,
1 1400 VA Opti-Ups battery back up system.

All software is fully licensed loaded registered and tested. The computer is optimized as a graphics workstation.
The results of all this is that our workstations are blazing fast and solidly dependable.

A biometric scanner in case you don't like passwords is optional.

---

Here is an example of one of the custom built workstations we build.

When I say we build a workstation I don't mean we order the PC from a company with a certain hard drive configuration or memory amount. We actually build the machine from the ground up starting with a custom case and machined modifications.



These types of modifications improve cooling and maintain a very fast and stable computer.

Each machine is built to order and guaranteed to run at certain performance specifications. Here the mother board tray has been powder coated and the mother board has been installed. Custom fans will be installed with fluid dynamic bearings to provide many years of silent service.



This particular rig will end up with thirteen separate fans.

Wire management is a key factor in keeping the case cool and quiet. All wiring is custom cut and routed to reduce unwanted turbulence in the case. A generous application of sound deadening material is added to silence the fans further. We use only the very best components in these machines and run them for at least five days after software is installed.

All machines undergo a 24 hour torture test where the processor is run at a full 100% for the entire time. Temperatures are monitored and recorded
hard drive and memory performance is also checked and recorded to insure as stable a build as is possible.

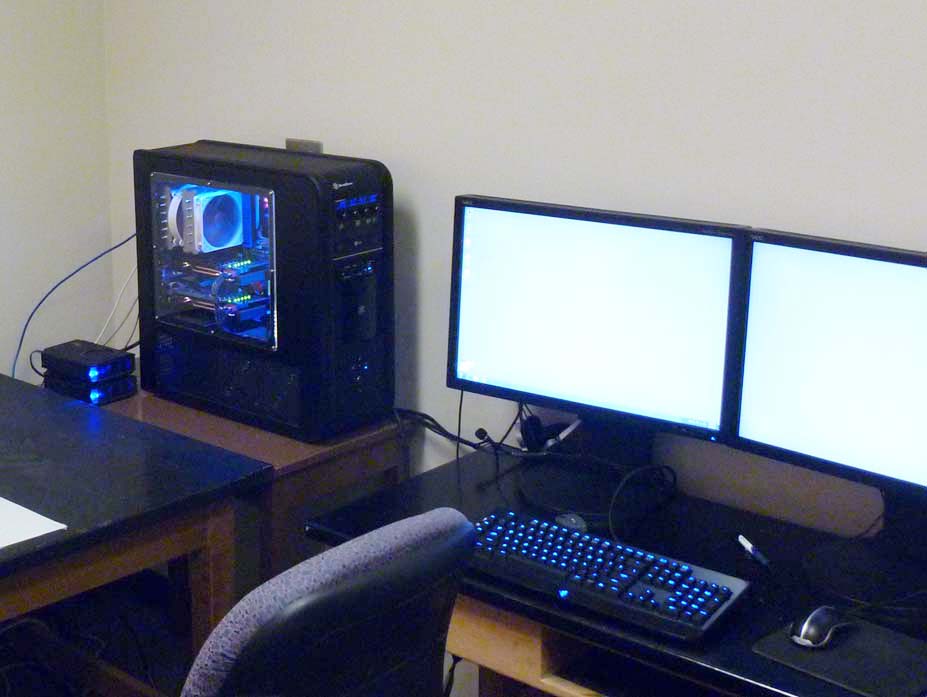

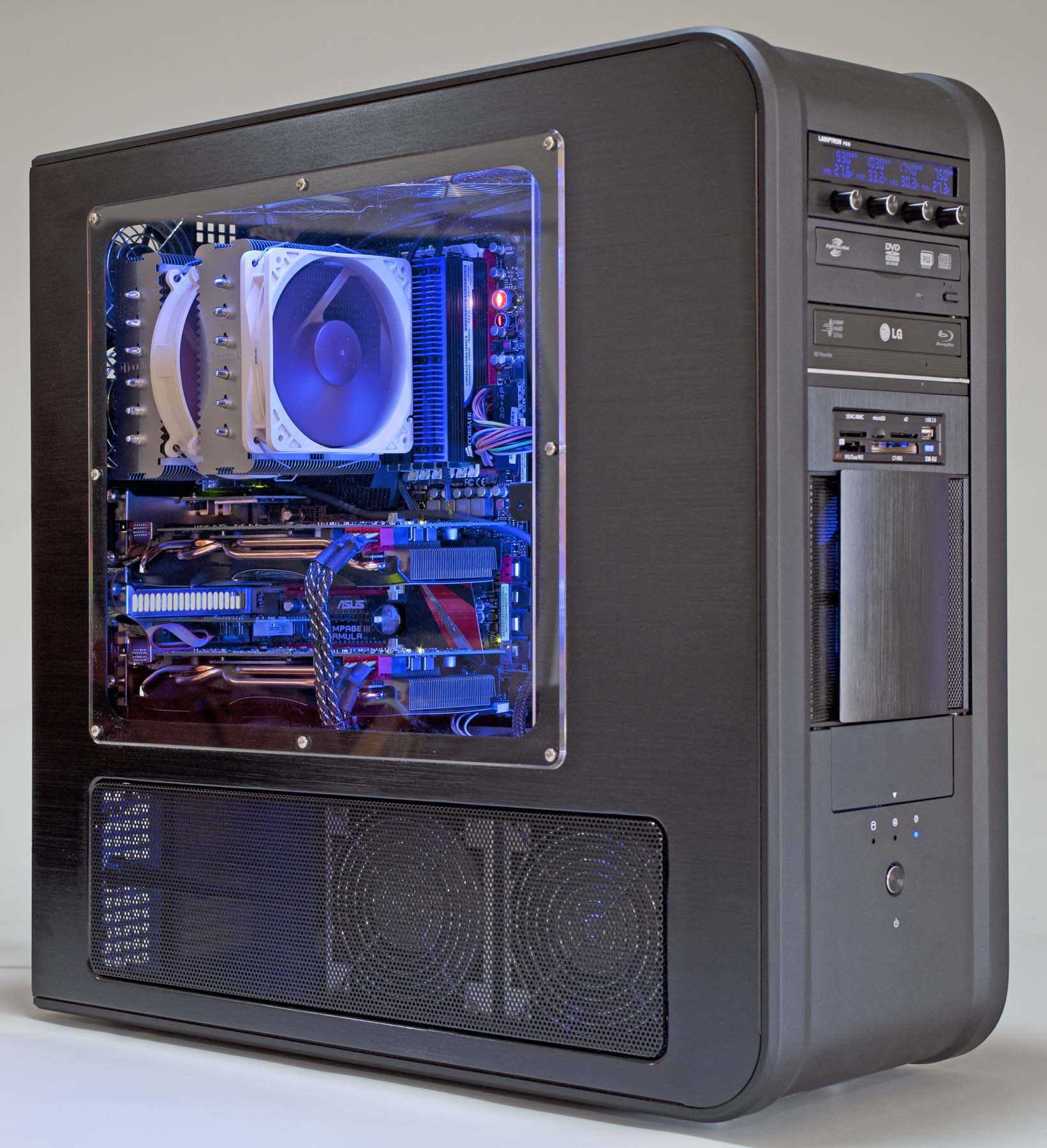

This case is a uni-body design with solid aluminum as thick as 8.0mm. We have incorporated a window on the side so the interior may be viewed. This box has Solid state internal hard drives and 24 GB of 1600 MHz memory. Photoshop boots full screen in about 1 second from a cold start. Total data storage capacity 8.5 TB A back lighted programmable keyboard and twin calibrated graphics monitors complement this CPU and make it a total pleasure to work on.



Our goal has been to incorporate the speed of the fastest gaming computers and the stability of the best enterprise class data servers. We have succeeded and in doing so
have introduced an entirely new class of PC workstations for the imaging professional.
